产品型号 |

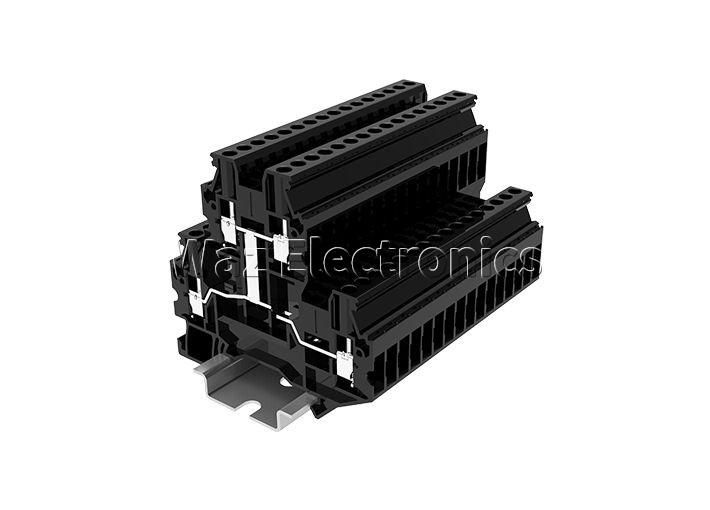

WTBD2.5-2-PV | ||
|

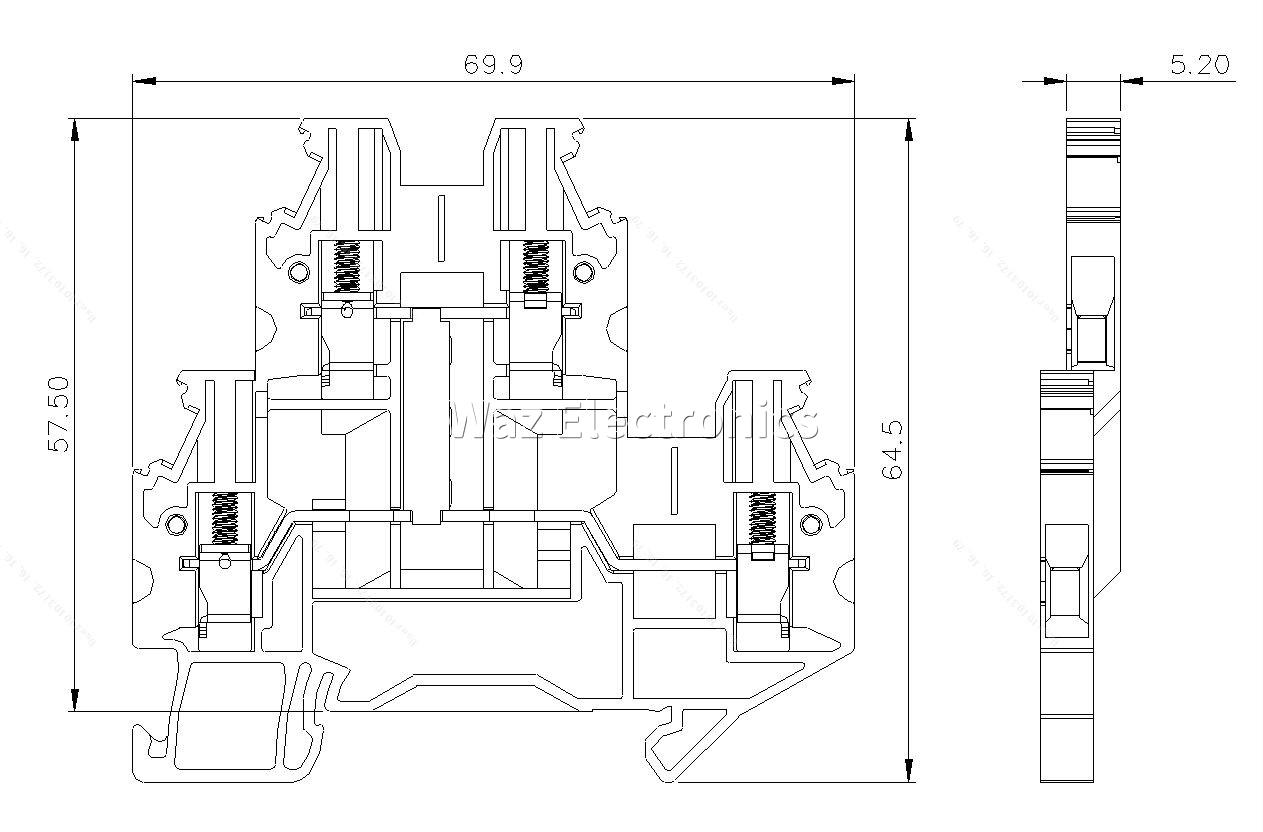

宽度 Width |
5.2mm | ||
|
产品层数 Number of levels |
2 | ||
|
接线位数 Number of connections |
2 | ||
|
接线方式 Connection method |
螺钉接线 Screw connection | ||
|
防护等级 Protection Level |
IP20 | ||
|
工作温度 Work temperature |
-40~+105℃ | ||
IEC数据 /IEC Data
额定电流
Rated Current
24A
额定电压
Rated Voltage
800V
过压类别
Overvoltage category
Ⅲ
污染等级
Pollution degree
3
额定冲击电压
Rated impulse voltage
8.0KV
刚性导线截面积
Conductor cross section solid
0.2-4mm²
柔性导线截面积
Conductor cross section flexible
0.2-2.5mm²
柔性导线截面积，带绝缘管套
Conductor cross section flexible,with furrule
0.2-2.5mm²
锁线螺钉规格
Locking screw Specification
M2.5
额定扭矩
Rated Torque
0.4N·m
固定螺钉规格
Fixed Screw Specification
-
额定扭矩
Rated Torque
-
剥线长度
Stripping length
9-11mm
