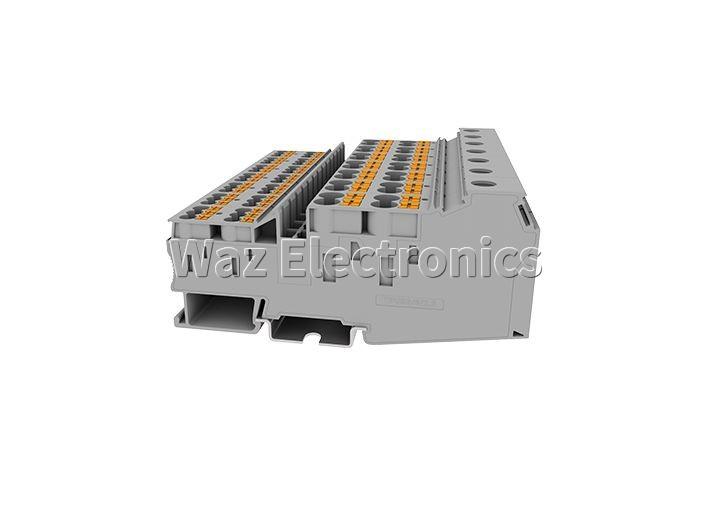

产品型号 |
WPTU35/6/2.5-11-GY | ||
|

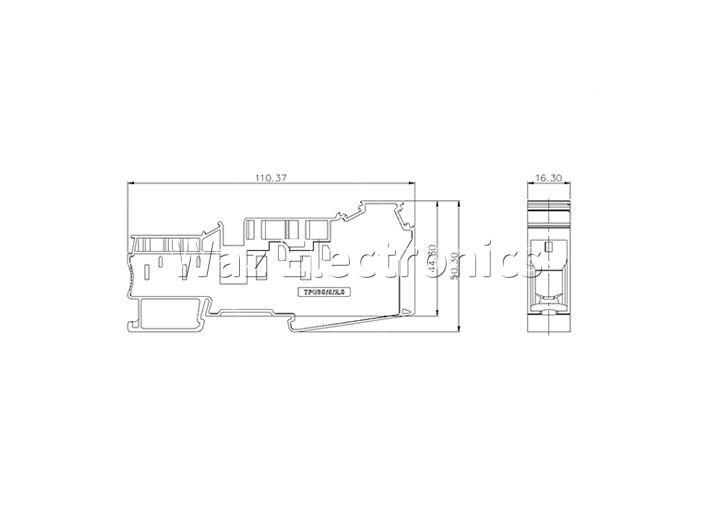

宽度 Width |
16.3mm | ||
|
产品层数 Number of levels |
1 | ||
|
接线位数 Number of connections |
11 | ||
|
接线方式 Connection method |
直插弹簧接线 | ||
|
防护等级 Protection Level |
IP20 | ||
|
工作温度 Work temperature |
-40~+105℃ | ||
额定电流
IEC数据 /IEC Data
Rated Current
A
B
C
105A
41A
24A
额定电压
Rated Voltage
1000V
1000V
1000V
过压类别
Overvoltage category
Ⅲ
Ⅲ
Ⅲ
污染等级
Pollution degree
3
3
3
额定冲击电压
Rated impulse voltage
8KV
8KV
8KV
刚性导线截面积
Conductor cross section solid
1.5-50mm²
0.5-10mm²
0.2-4mm²
柔性导线截面积
Conductor cross section flexible
1.5-50mm²
0.5-6mm²
0.2-2.5mm²
柔性导线截面积，带绝缘管套
Conductor cross section flexible,with furrule
1.5-35mm²
0.5-6mm²
0.2-2.5mm²
锁线螺钉规格
Locking screw Specification
-
-
-
额定扭矩
Rated Torque
-
-
-
固定螺钉规格
Fixed Screw Specification
M6
-
-
额定扭矩
Rated Torque
2.5N.m
-
-
剥线长度
Stripping length
18mm
12mm
10mm
