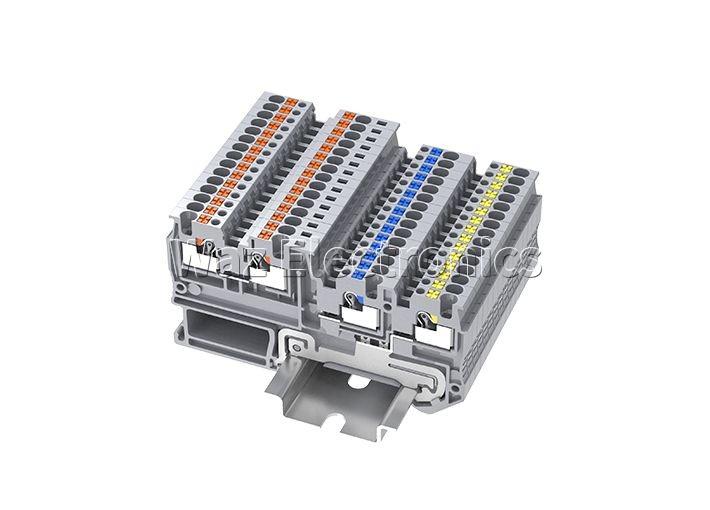

WPTIO1.5-S-3-PE

Category： Dinrail Terminal Blocks
Product description：Dinrail Terminal Blocks for Led Driver, Automation Control, Elevator Control, Security Control.
INQUIRY EMAIL Amazon

基本信息 /Basic Information

IEC数据 /IEC Data

额定电流 Rated Current	/
额定电压 Rated Voltage	-
过压类别 Overvoltage category	Ⅲ
污染等级 Pollution degree	3
额定冲击电压 Rated impulse voltage	6KV
刚性导线截面积 Conductor cross section solid	0.2-1.5mm²
柔性导线截面积 Conductor cross section flexible	0.2-1.5mm²
柔性导线截面积，带绝缘管套 Conductor cross section flexible,with furrule	0.2-1.5mm²
剥线长度 Stripping length	8-9mm

Tags: Dinrail Terminal BlocksWPTIO15-S-3-PE
