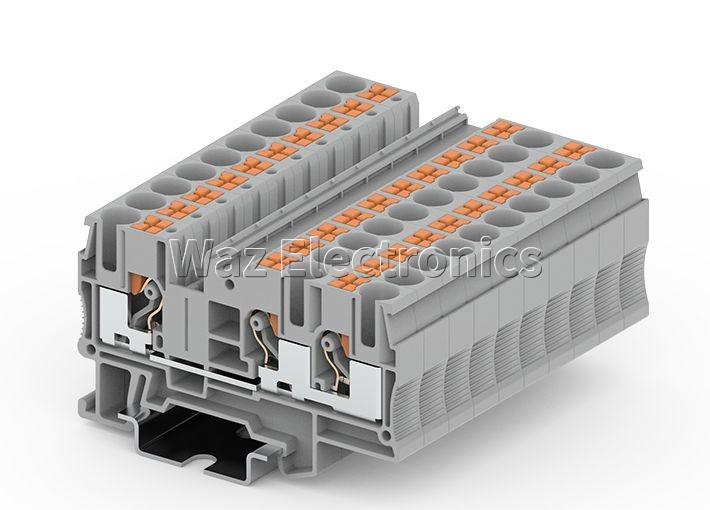

WPT6-3-GY

Category： Dinrail Terminal Blocks
Product description：Dinrail Terminal Blocks for Led Driver, Automation Control, Elevator Control, Security Control.
INQUIRY EMAIL Amazon

基本信息 /Basic Information

IEC数据 /IEC Data

额定电流 Rated Current	41A
额定电压 Rated Voltage	1000V
过压类别 Overvoltage category	Ⅲ
污染等级 Pollution degree	3
额定冲击电压 Rated impulse voltage	8KV
刚性导线截面积 Conductor cross section solid	0.5-10mm²
柔性导线截面积 Conductor cross section flexible	0.5-6mm²
柔性导线截面积，带绝缘管套 Conductor cross section flexible,with furrule	0.5-6mm²
剥线长度 Stripping length	10-12mm

Tags: Dinrail Terminal BlocksWPT6-3-GY
