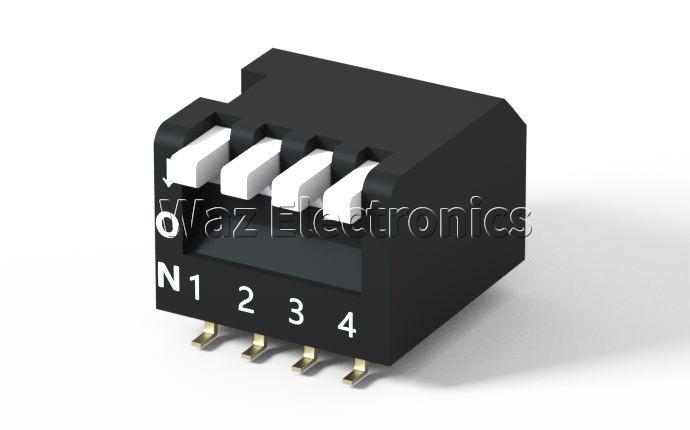

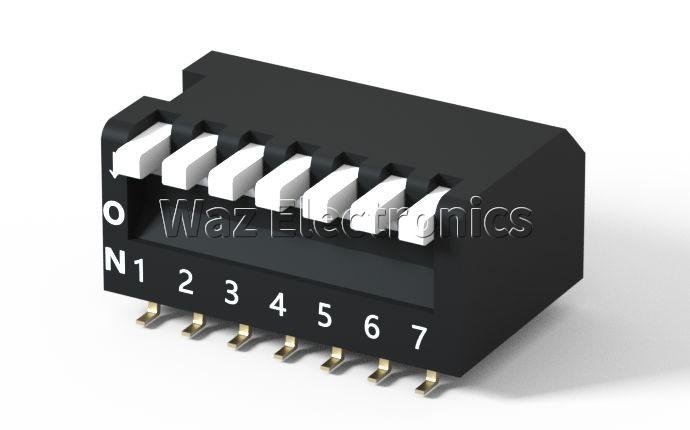

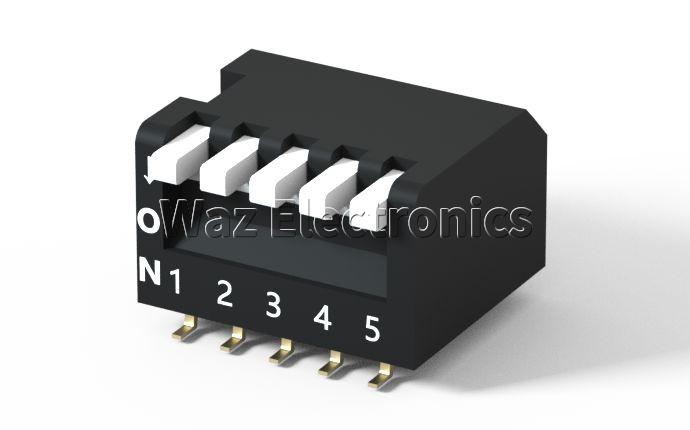

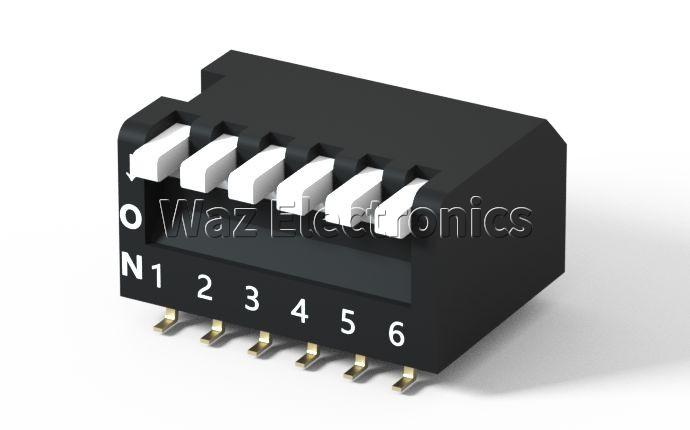

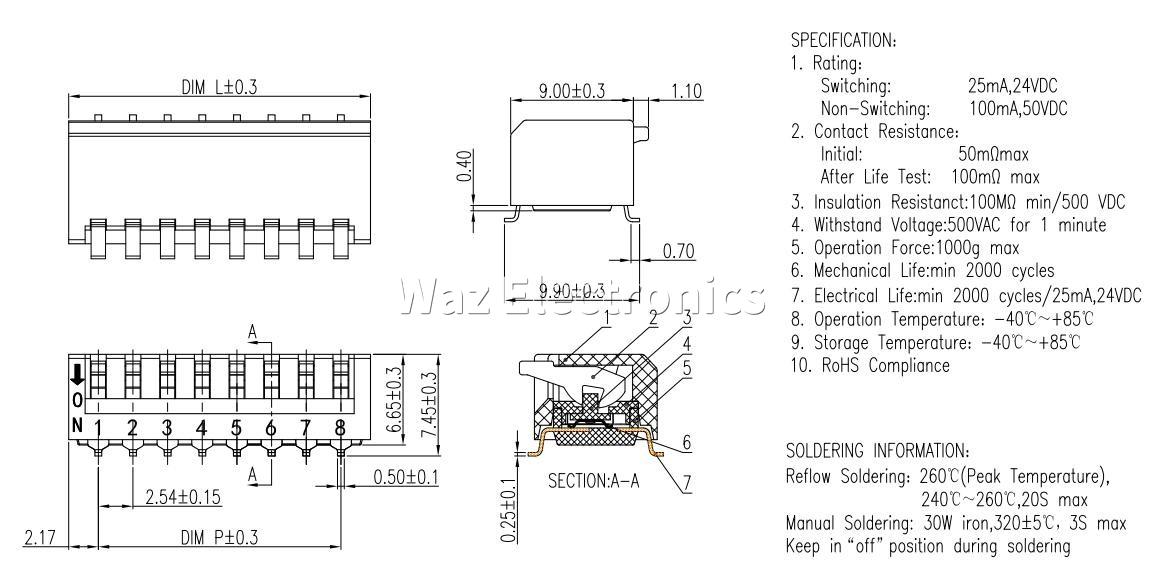

DS08B

Material

Base: UL94V0 PBT, Black

Cover: Ul94V0 PBT, Black

Button: UL94V0 PA66, White

Terminal: Phosphor Bronze, Gold Plating

Contact Rating

Switching: 25mA,24VDC

Non-Switching: 100mA,50VDC

Contact Resistance

Initial: 50mΩ/Max

After Reliability Test: 100mΩ/Max

Insulation Resistance: 100MΩ/min at 500VDC

Dielectric Strength: 500VAC/min

Operating Force: 1000g/Max

Travel: 0.9mm

Electrical Life: 2000 cycles/25mA,24VDC

Operating Temperature: -40°C~+85°C

Storage Temperature: -40°C~+85°C

SOLDERINGANDCLEANING

Keep all switch contacts in their “off” position for all operations.

Hand Soldering

Use a 30-watt soldering iron to control the temperature at 320°C±5°C, within 3 sec.

Reflow Soldering

Reflow zone 240°C(20smax),peak temperature 260°C

Wave Soldering

Recommended soldering temperature at 250±10°C,within 5 sec.
