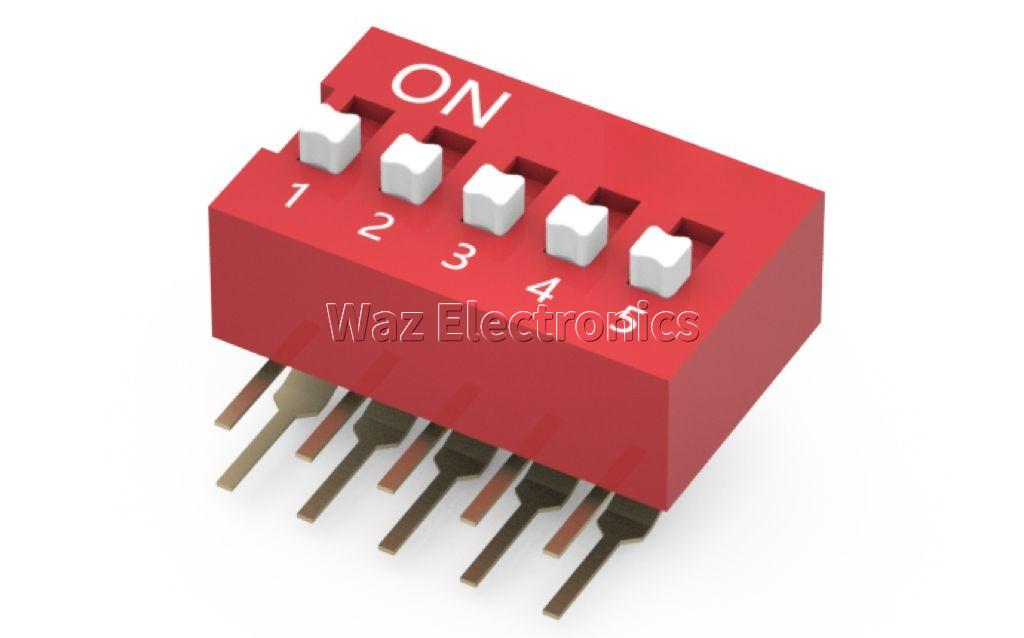

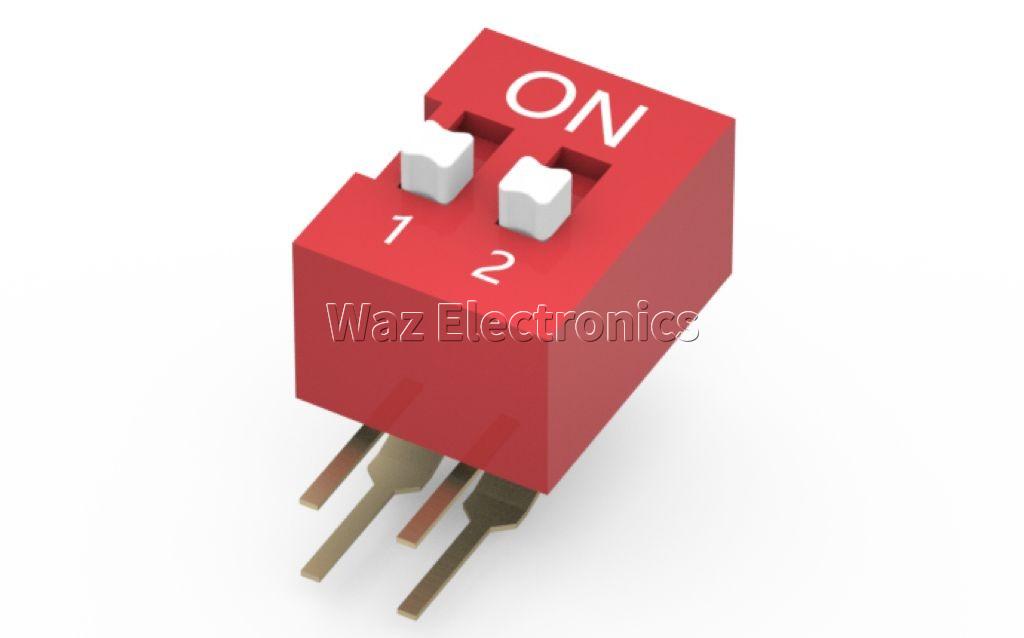

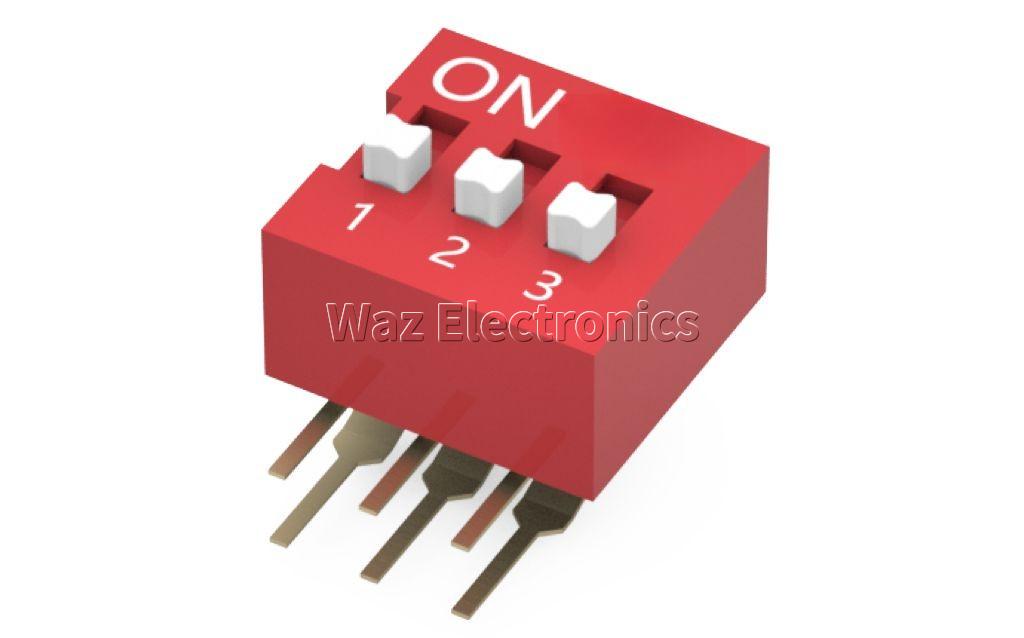

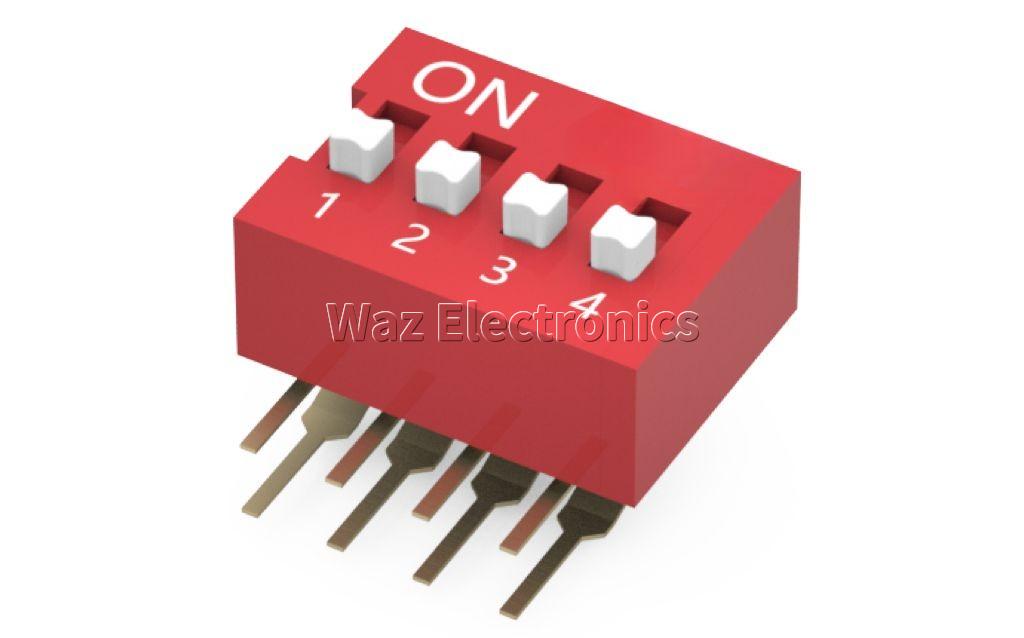

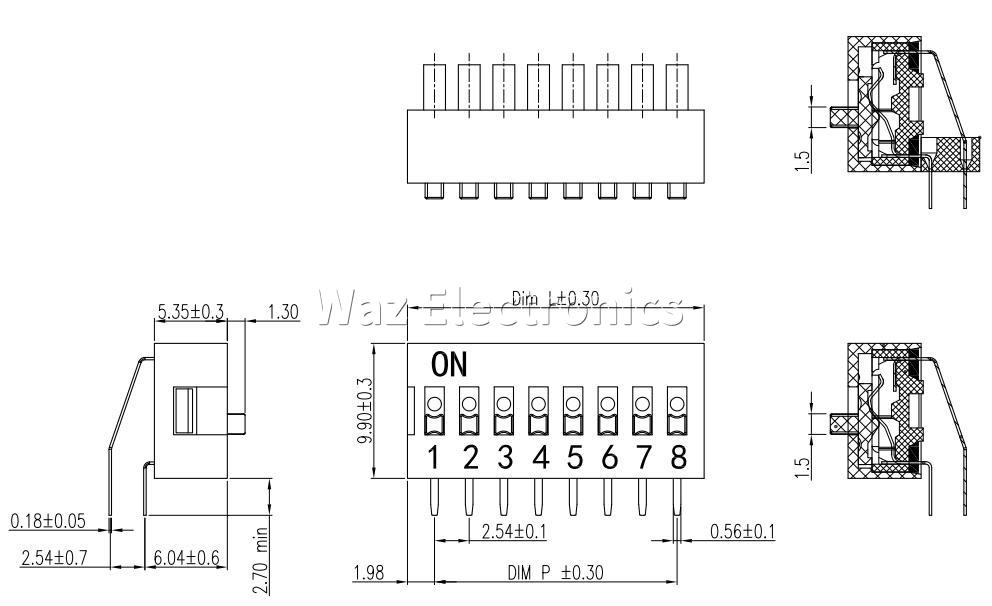

DS03

MATERIAL

Base:UL94V-0PBT,Black

Cover:UL94V-0PBT,Red,Blue,Black

Button:UL94V-0PA66,White

Terminal: Phosphor bronze, Gold plating

ELECTRICAL

Electrical Life:2000operationsperswitch24VDC,25mA

Non-Switching Rating:100mA,50VDC

Switching Rating:25mA,24VDC

The Contact Impedance: A initial value of the maximum 50mΩ,B testing after the maximum100mΩ

Insulation Resistance:100MΩ/min at 500V DC

Dielectric Strength: 500V AC/min

Capacitance: Max 5pF

The Loop: Single contact single selection

MECHANICAL

Operating Force: 10N(max)

Operation Temp.: -40°C~+85°C

Storage Temp.: -40°C~+85°C

SOLDERINGANDCLEANING

Keep all switch contacts in their “OFF” position for all operations

Wave soldering: Recommended soldering temperature at 250±10°C，with in 5 seconds

Hand welding: Use a 30-watt soldering iron to control the temperature at 320±5°C, within 3 seconds.

Cleaning:Better use ultra sonic method;Use steam mode, temperature should not  exceed51°C
