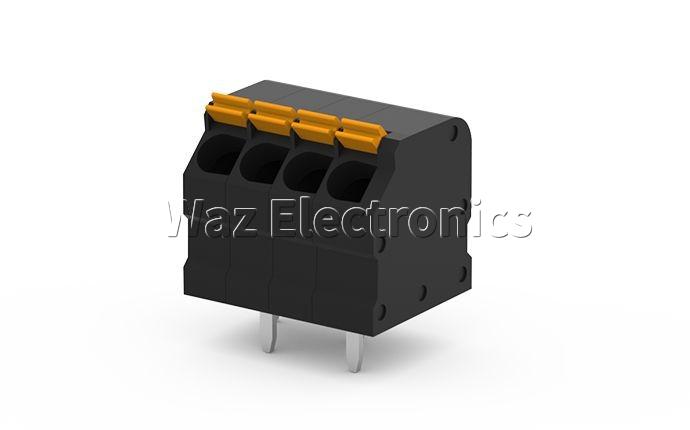

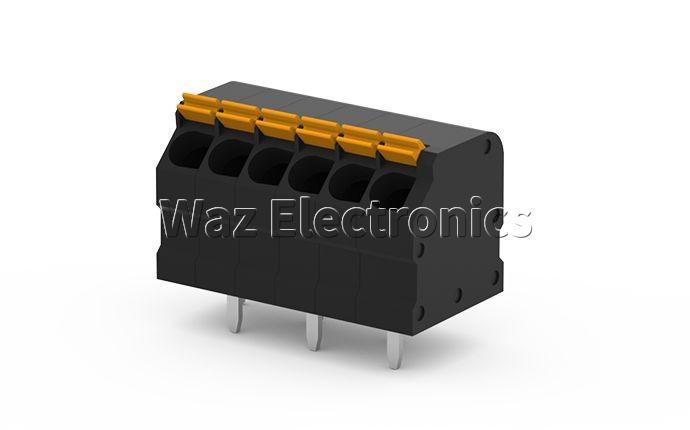

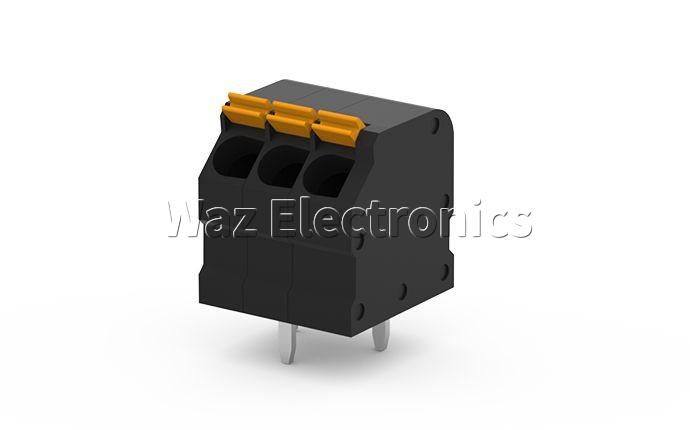

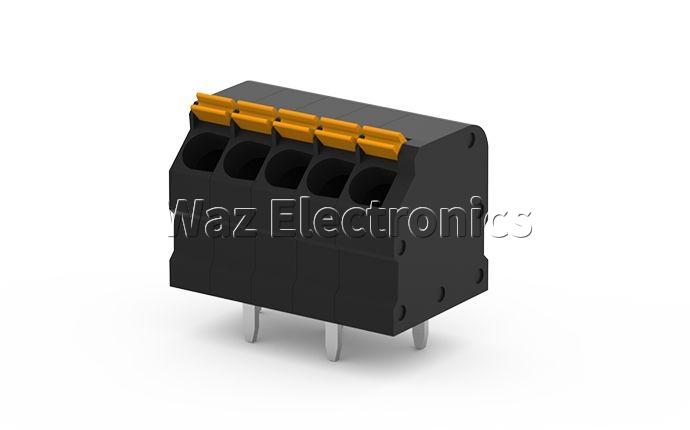

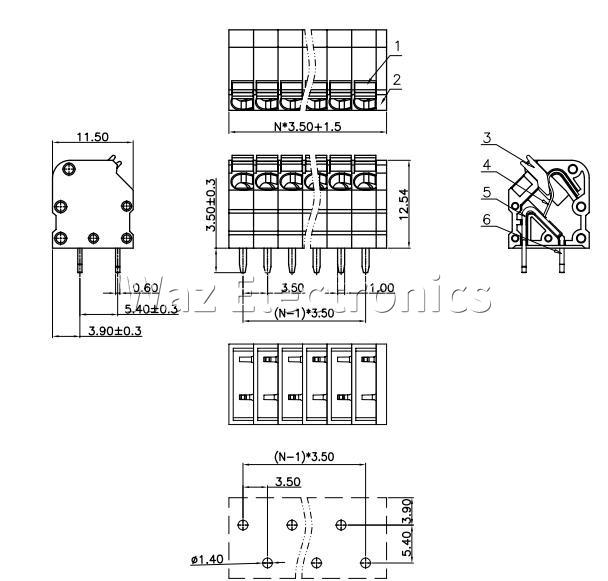

PCB Terminal Block Spring Type ，Nominal Current：UL 9A，IEC 17.5A，Nominal Voltage：UL300V，IEC320V，Wire Size：26-16AWG 1.5MM², Pitch：3.50 mm, Pole No.: 02P-24P
|
Design Standard |
UL1059/IEC60998 |
1.Item Properties
|
Series no. |
621812xx |
|
Pole No. |
02P-24P |
|
Pitch |
3.50 mm |
|
Type |
Spring Type |
|
Connection Method |
Spring Type |
|
Pin Arrangement |
Single row Straight Line |
|
Screw thread |
/ |
|
Drive from screw head |
Spring |
|
Storage temperature |
-40℃-70℃ |
|
Connection direction |
90° |
2. Material
2.1Material of plastic
|
Color |
Black |
|
Insulating Material |
PA |
|
Insulating material group |
I |
|
Flammability rating according to UL94 |
V0 |
2.2 Metal Parts
|
Screw Material |
Steel Alloy |
|
Screw surface |
Zinc |
|
Contact material |
Steel alloy |
|
Terminal point surface |
Tin |
|
Surface contact area |
Tin |
|
Surface characteristics |
Tin Plated |
3. Application
|
Wire stripping |
9-10mm |
|
Torque |
/ |
|
Conductor cross section |
26-16AWG 1.5mm² |
|
Operation Temperature |
-40℃-105℃ |
|
Transient temperature |
+250℃，5sec |
4.Electrical
|
|
IEC |
UL |
|
Nominal voltage |
320V |
300V |
|
Nominal current |
17.5A |
9A |
|
Voltage resistance |
AC2500V/1min |
|
|
Contact resistance |
20mΩ |
|
|
Insulation resistance |
500MΩ/DC500V |
|
