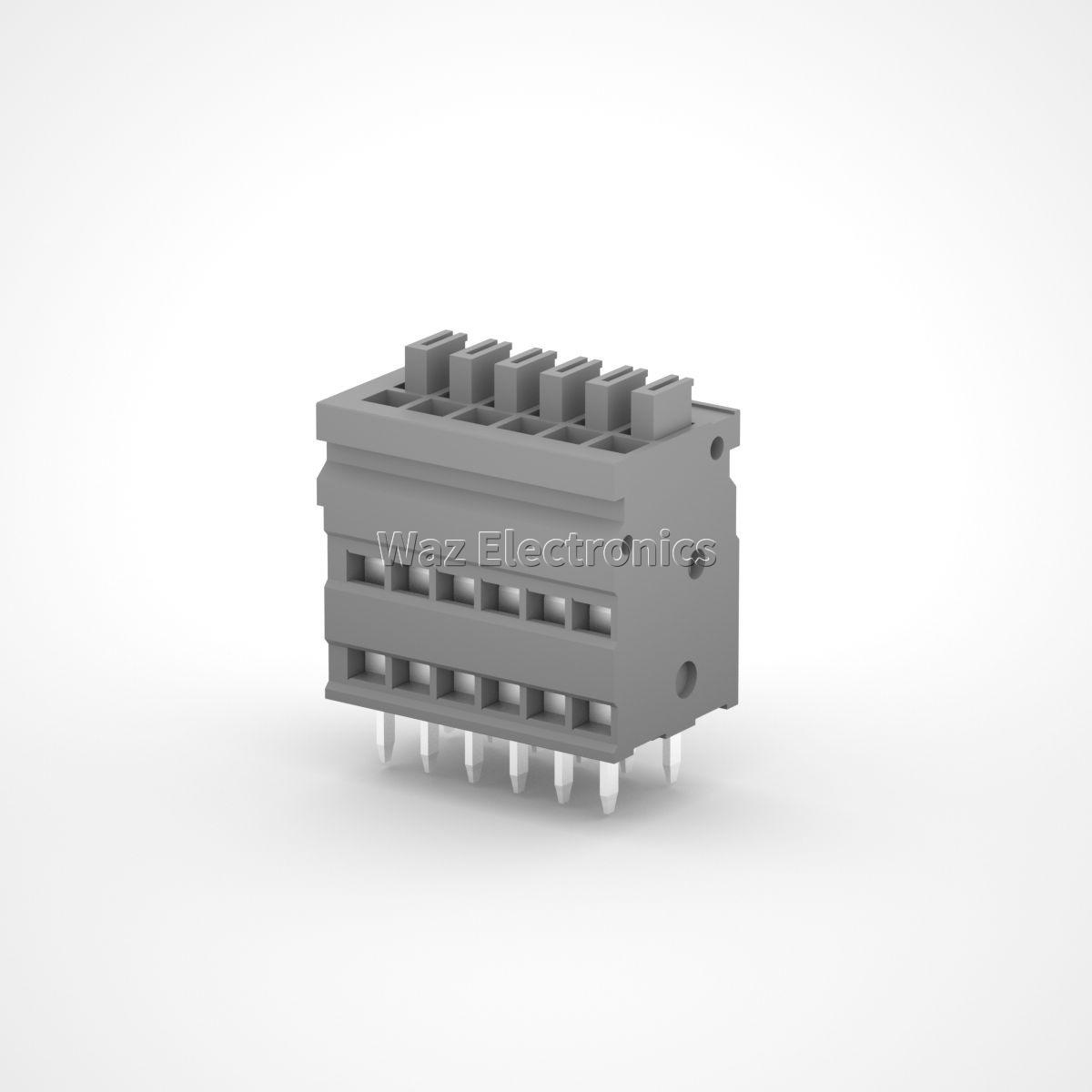

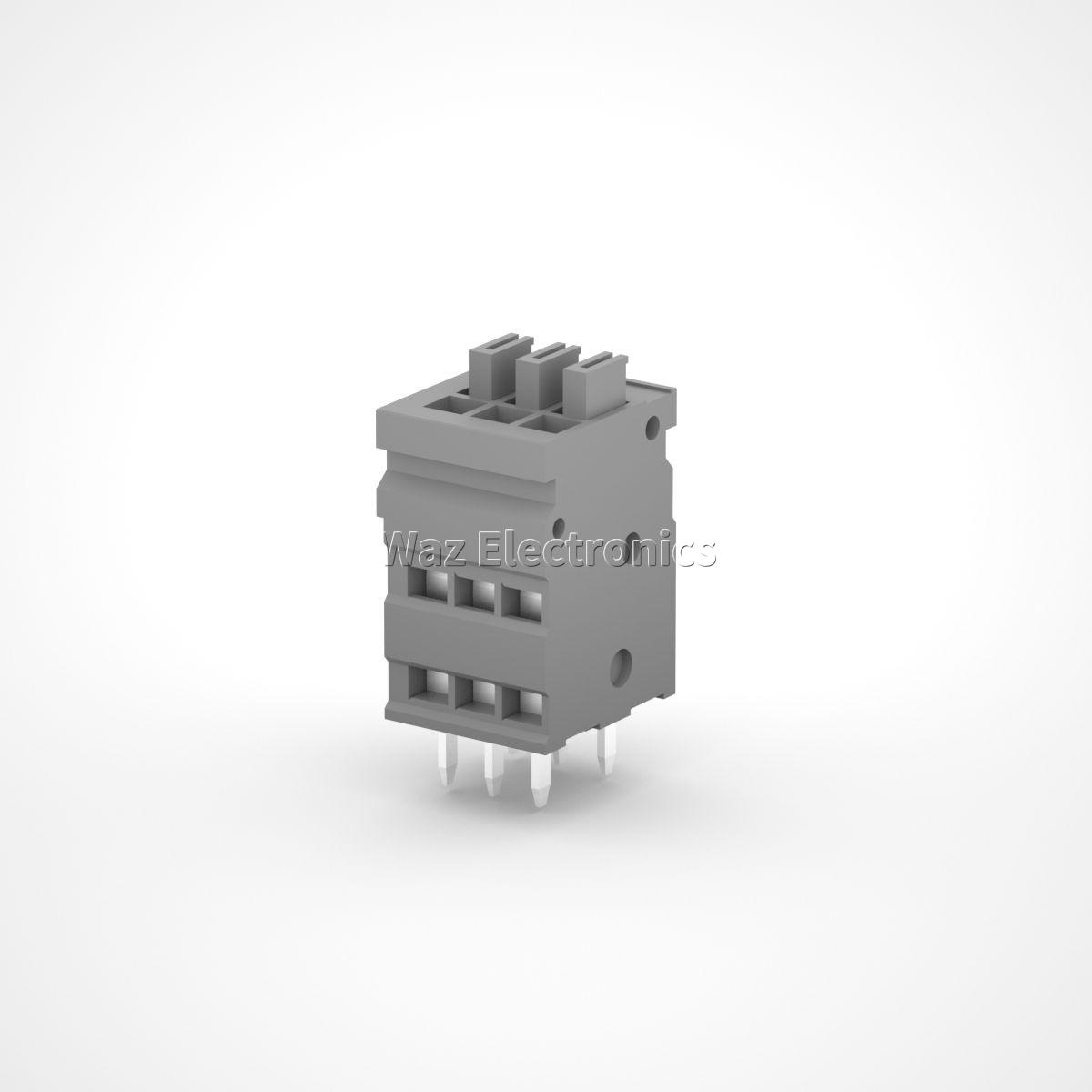

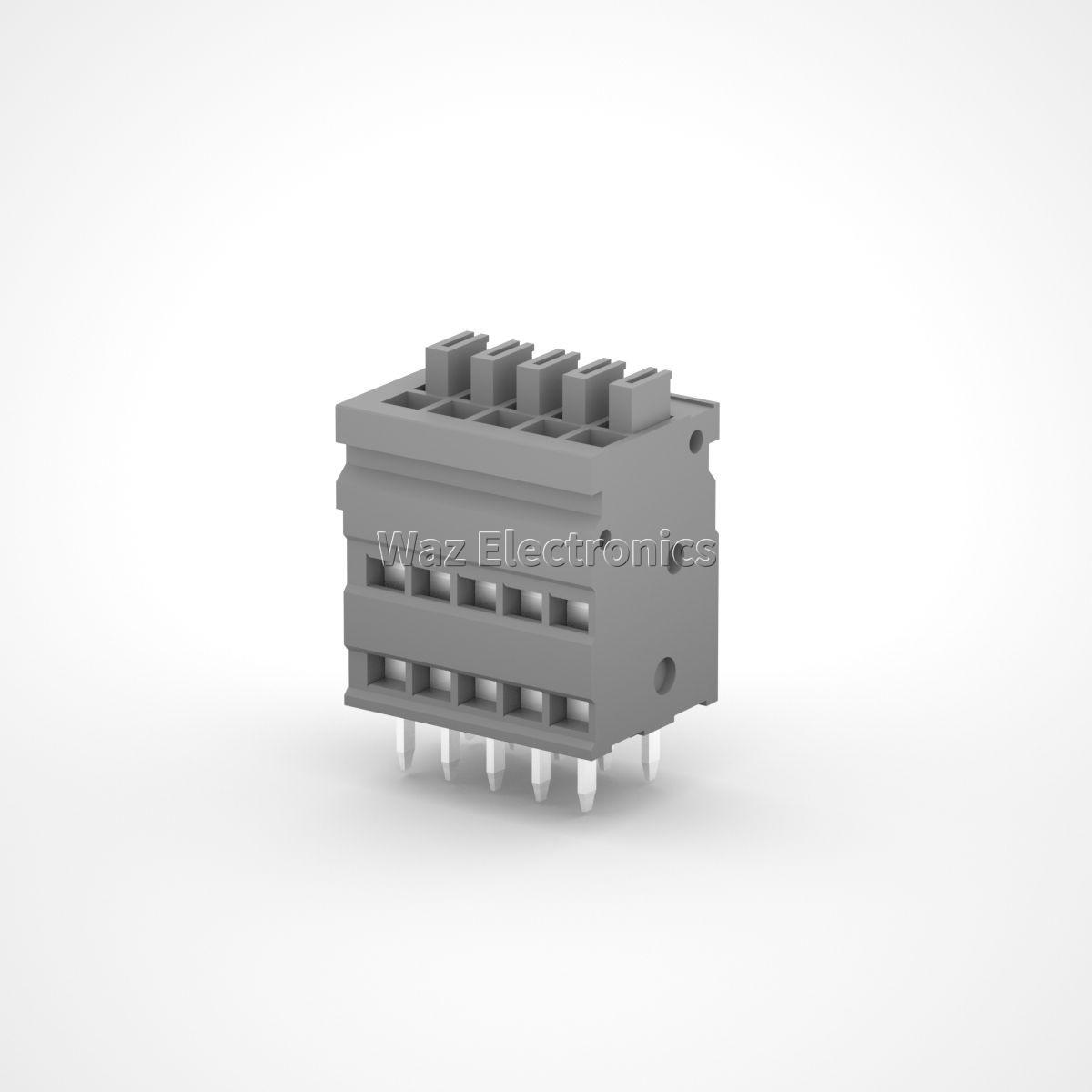

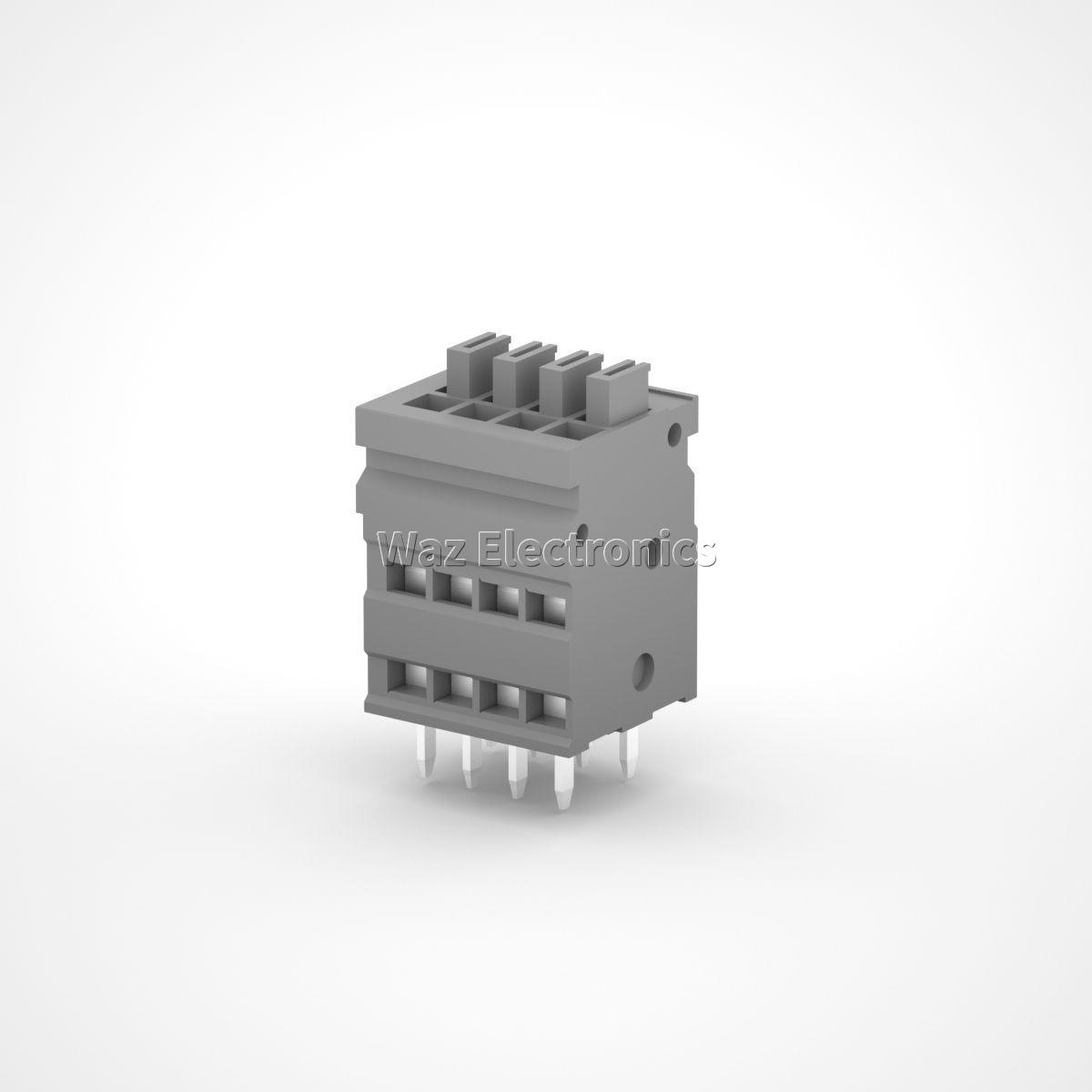

620501xx

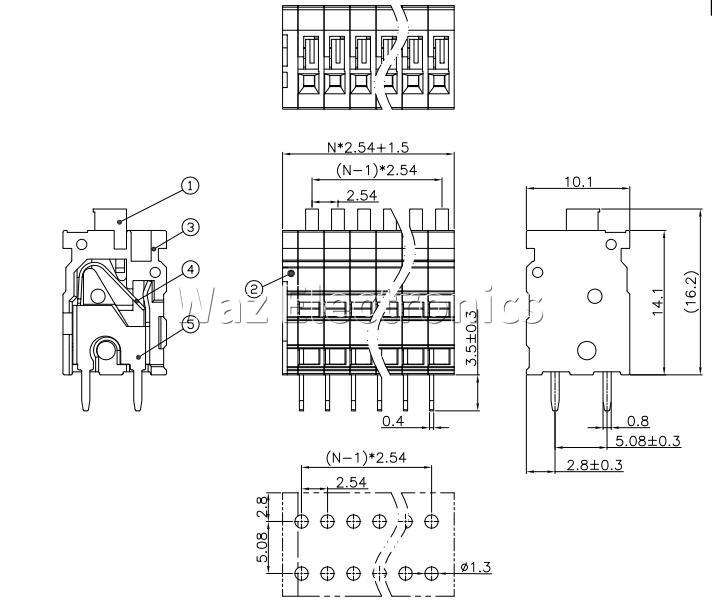

PCB Terminal Block Spring Type Nominal CurrentUL 5AIEC 6ANominal VoltageUL150VIEC130VWire Size:24-20AWG 1.0MM², Pitch:2.54 mm, Pole No.: 02P-24P



Design Standard

UL1059/IEC60998



1.Item Properties

Series no.

620501xx

Pole No.

02P-24P

Pitch

2.54 mm

Type

Spring Type

Connection Method

Spring Type

Pin Arrangement

/

Screw thread

/

Drive from screw head

Spring

Storage temperature

-40℃-70

Connection direction

/



2. Material



2.1Material of plastic

Color

Grey

Insulating Material

PA

Insulating material group

I

Flammability rating according to UL94

V0



2.2 Metal Parts

Screw Material

Steel Alloy

Screw surface

Zinc

Contact material

Steel alloy

Terminal point surface

Tin

Surface contact area

Tin

Surface characteristics

Tin Plated



3. Application

Wire stripping

11mm

Torque

/

Conductor cross section

24-20AWG 1.0mm²

Operation Temperature

-40-105

Transient temperature

+250℃,5sec



4.Electrical



IEC

UL

Nominal voltage

130V

150V

Nominal current

6A

5A

Voltage resistance

AC1250V/1min

Contact resistance

20mΩ

Insulation resistance

500MΩ/DC500V
