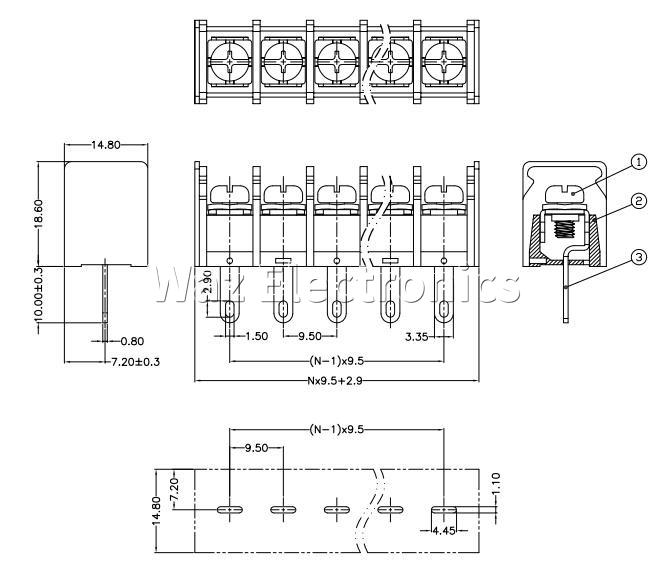

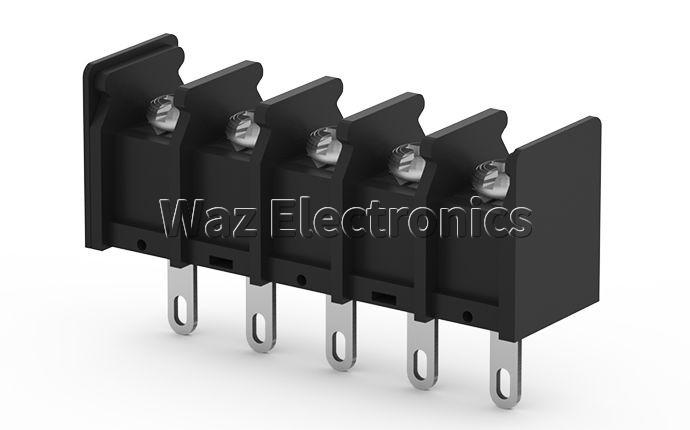

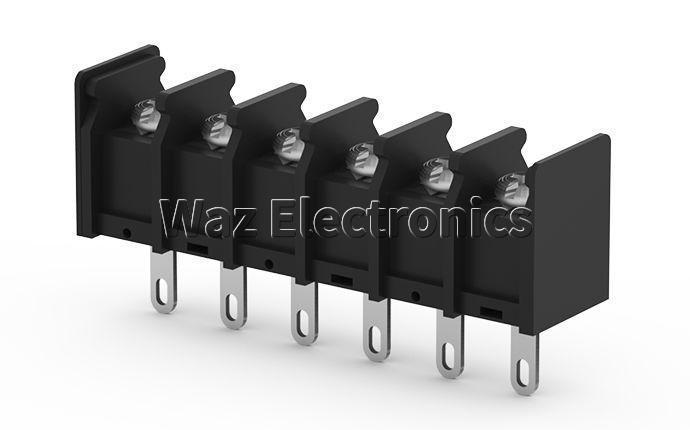

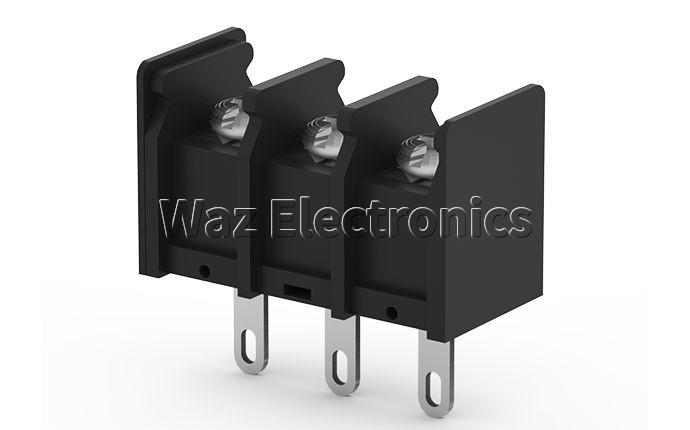

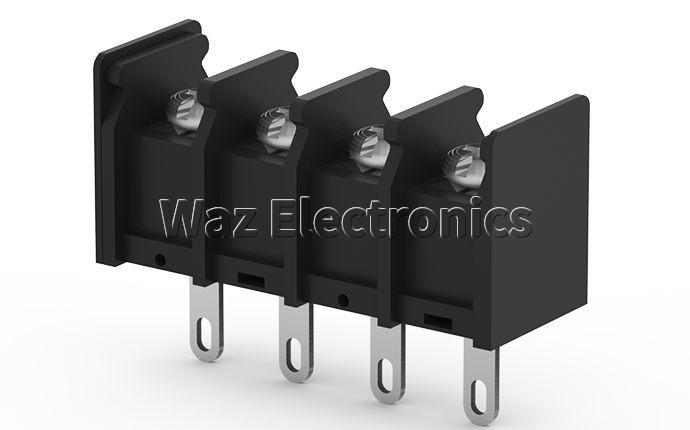

PCB Terminal Block Barrier Type ，Nominal Current：UL 25A，IEC 32A，Nominal Voltage：UL300V，IEC750V，Wire Size：22-12AWG 4.0MM², Pitch：9.50 mm, Pole No.: 02P-24P
|
Design Standard |
UL1059/IEC60998 |
1.Item Properties
|
Series no. |
712223xx |
|
Pole No. |
02P-24P |
|
Pitch |
9.50 mm |
|
Type |
Barrier Type |
|
Connection Method |
Palisade Type without wire limit |
|
Pin Arrangement |
Single row Straight Line |
|
Screw thread |
M4.0 |
|
Drive from screw head |
Flat-head cross screw |
|
Storage temperature |
-40℃-70℃ |
|
Connection direction |
180° |
2. Material
2.1Material of plastic
|
Color |
Black |
|
Insulating Material |
PA |
|
Insulating material group |
I |
|
Flammability rating according to UL94 |
V0 |
2.2 Metal Parts
|
Screw Material |
Steel Alloy |
|
Screw surface |
Zinc |
|
Contact material |
Steel alloy |
|
Terminal point surface |
Tin |
|
Surface contact area |
Tin |
|
Surface characteristics |
Tin Plated |
3. Application
|
Wire stripping |
/ |
|
Torque |
1.2N.m(10.53Lb.in) |
|
Conductor cross section |
22-12AWG 4.0mm² |
|
Operation Temperature |
-40℃-105℃ |
|
Transient temperature |
+250℃，5sec |
4.Electrical
|
|
IEC |
UL |
|
Nominal voltage |
750V |
300V |
|
Nominal current |
32A |
25A |
|
Voltage resistance |
AC2000V/1min |
|
|
Contact resistance |
20mΩ |
|
|
Insulation resistance |
500MΩ/DC500V |
|
